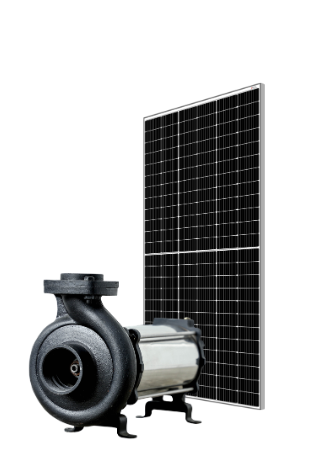

Solar Openwell Pump

Reliable and efficient solar openwell pumps designed for shallow water sources such as open wells, ponds, and tanks. Ideal for agricultural irrigation and continuous water supply with solar energy.

Available Range: 1 HP – 15 HP
  • Shallow Water Operation: Perfect for open wells & tanks
  • High Flow Rate: Efficient water discharge
  • Compact Design: Easy installation & handling
  • Energy Efficient: Optimized solar performance
  • Robust Build: Long-lasting and durable system
Download Brochure Discharge Report
Solar Openwell Pump

Key Features

Shallow Water Pumping
High Flow Output
Easy Installation
Energy Efficient
Certified Quality
Warranty Assured

Technical Specifications

Solar openwell pumps are specially designed for shallow and medium depth water sources. These pumps operate efficiently under varying water levels and deliver high discharge with reliable solar-powered performance.

  • Submersible Openwell Design: No suction pipe required
  • High Discharge Output: Suitable for irrigation & water transfer
  • Continuous Duty (S1): Designed for long working hours
  • Solar Compatible: Works with MPPT / VFD controllers

Ideal Usage

  • ✔ Agriculture Irrigation
  • ✔ Openwell & Canal Water Pumping
  • ✔ Tank Filling & Storage Systems
  • ✔ Rural & Domestic Water Supply
  • ✔ Industrial Water Transfer
Parameter Specification
Pump Type Openwell Submersible Pump
Power Range 1 HP – 15 HP
Head Range 5 – 70 meters
Discharge Capacity 20 – 2500 LPM
Motor Speed 2850 – 2900 RPM
Operating Voltage 180V – 440V (AC/DC)
Motor Type Water-filled Induction Motor
Duty Type Continuous (S1)
Body Material Cast Iron / Stainless Steel
Impeller Cast Iron / Bronze
Max Temperature Up to 35°C
